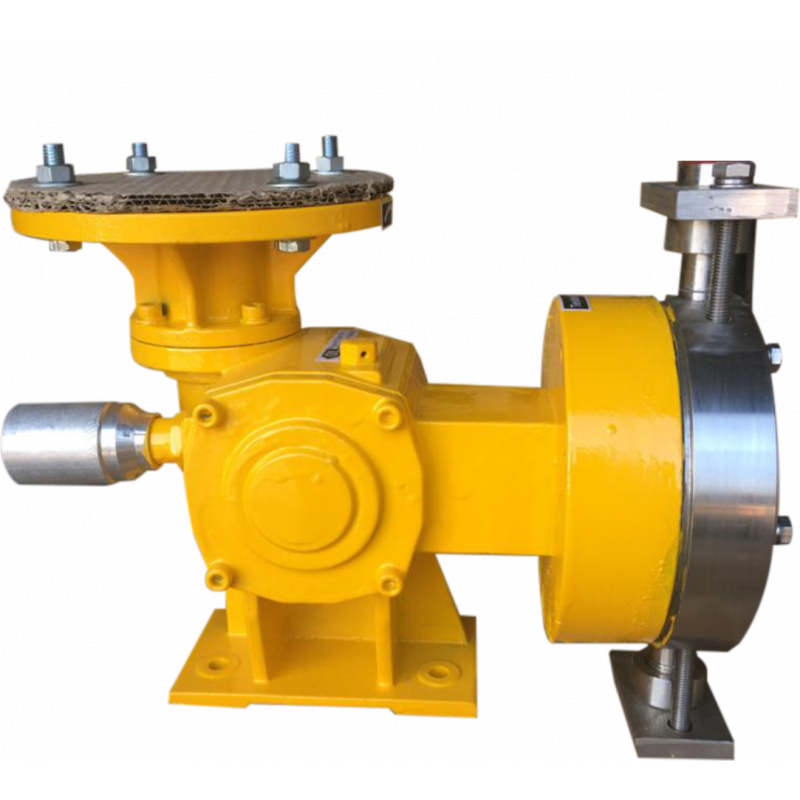

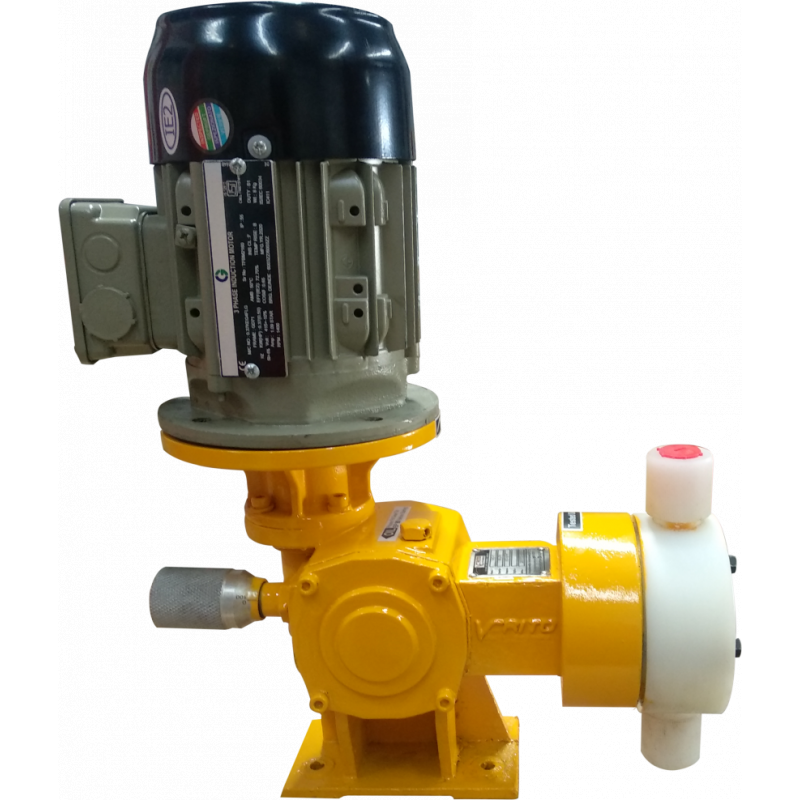

Mechanically Actuated Diaphragm Pump
Mechanically Actuated Diaphragm Pump Details
Features:
• Very economical.
• PTFE Diaphragm.
• Remote control foulin is available.
• Easy to operate.
• Less maintenance.
Capacity Range : 0 to 1000 L/hr in simplex designs Higher capacities can be achieved by multiplexing head.
Pressure Range : 0-10 kg/ cm2 in Standard Version.
Wetted Part : (Contact Part of Materials)
SS 304, SS 316, SS 316L, PP, PTFE (Teflon), PVC, Alloy – 20 Haste Alloy 'C'
Temperature Range : 30 Degree Celsius to 300 Degree Celsius.
MD Series – Non Leackage Pump Standard Models:
| No | Model | Capacity | Max Pressure |
|---|---|---|---|
| 1. | VMD - O1 | 0 to 100 | 8 |
| 2. | VMD - O2 | 0 to 500 | 8 |
| 3. | VMD - O3 | 0 to 1000 | 8 |
